Adult Breast (Simple) for X-Ray, CT Scan and MRI
The Adult Breast (Simple) Phantom for X-Ray CT and Ultrasound is a realistic phantom. Its design is based on the
average female anatomy of a human breast. This phantom is compatible with X-Ray CT and Ultrasound. This makes it an
ideal
tool to study, research, test, & calibrate medical imaging devices.

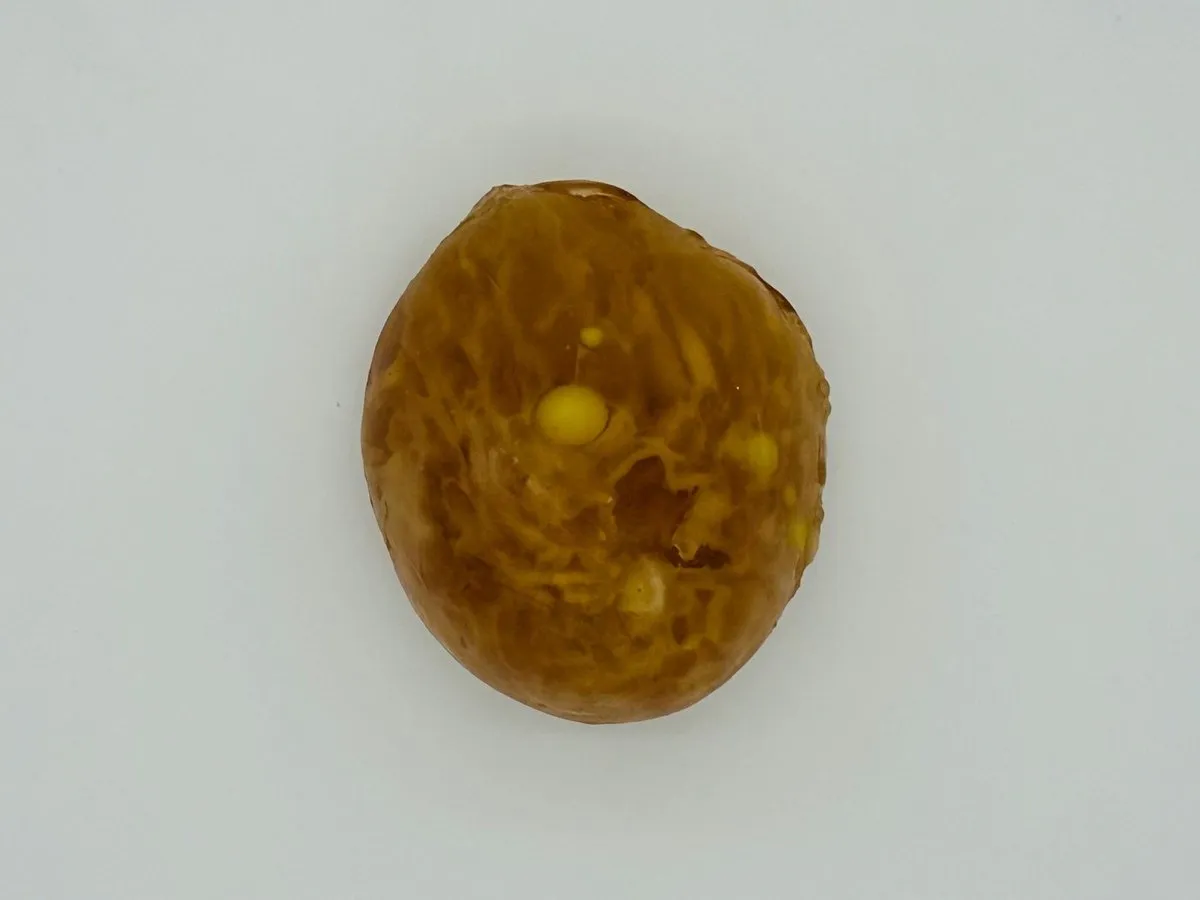

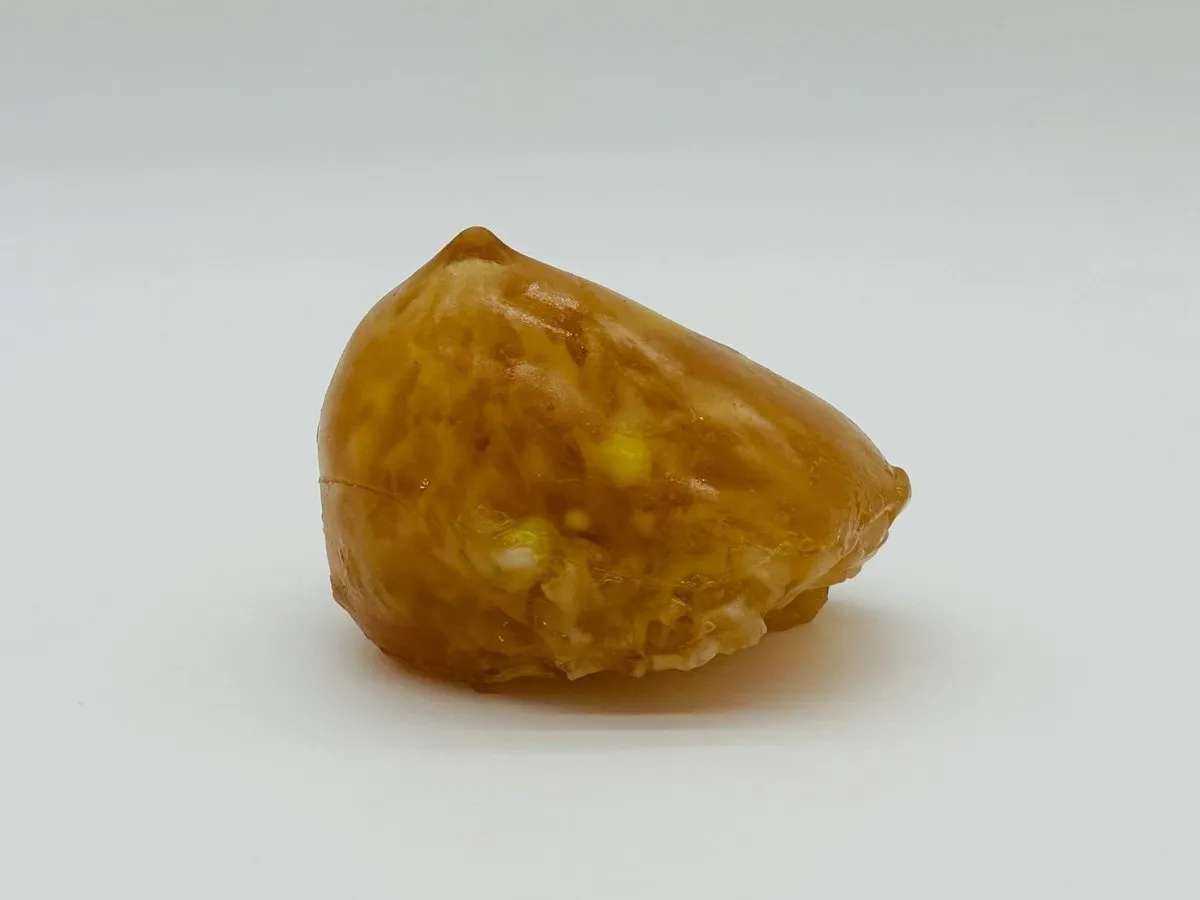

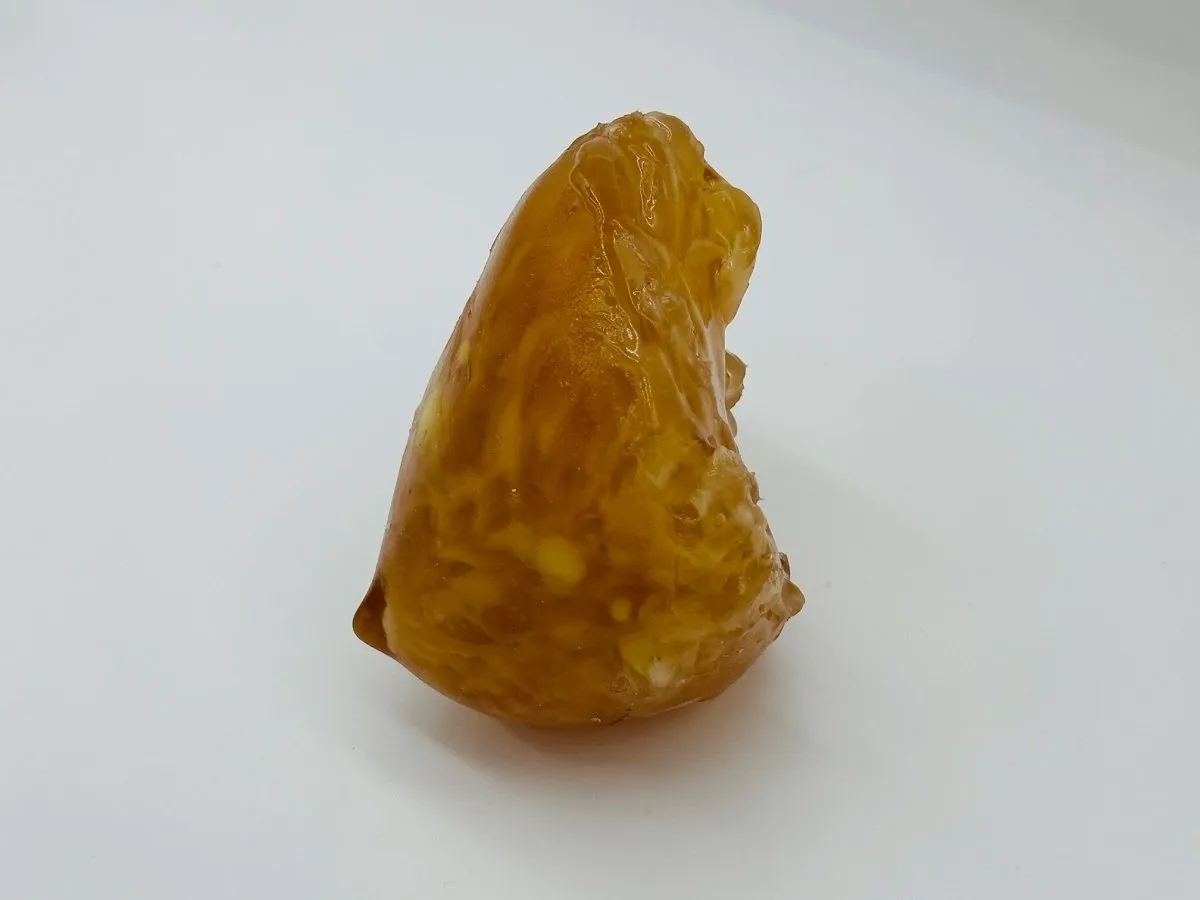

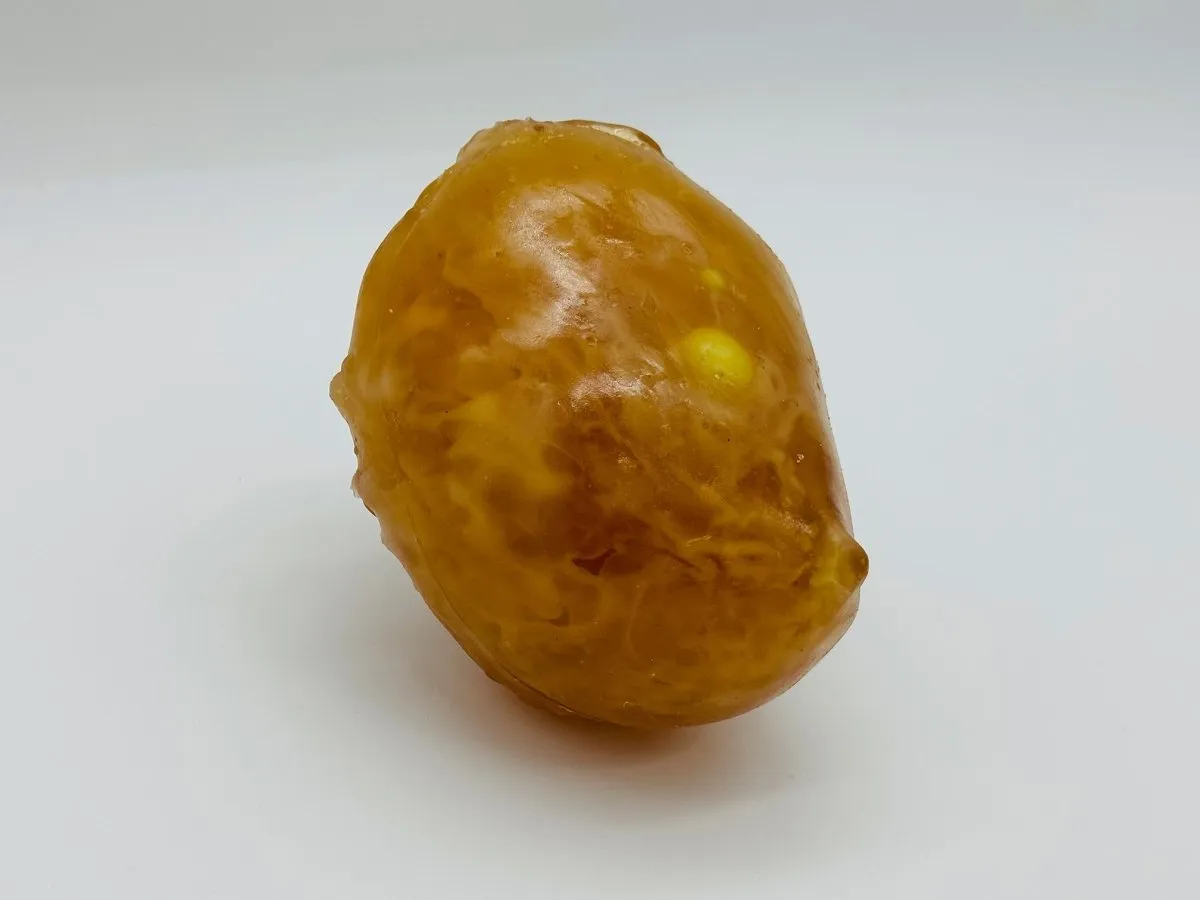

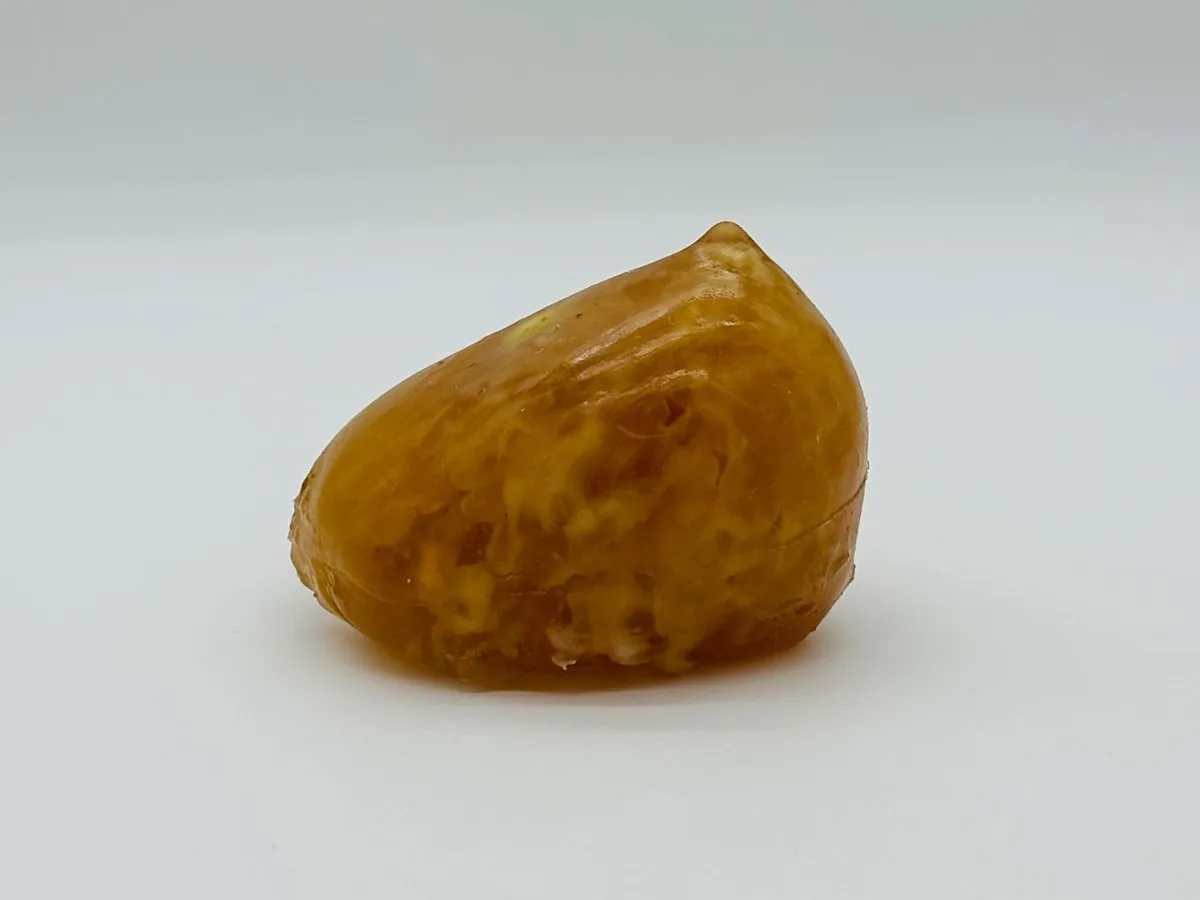

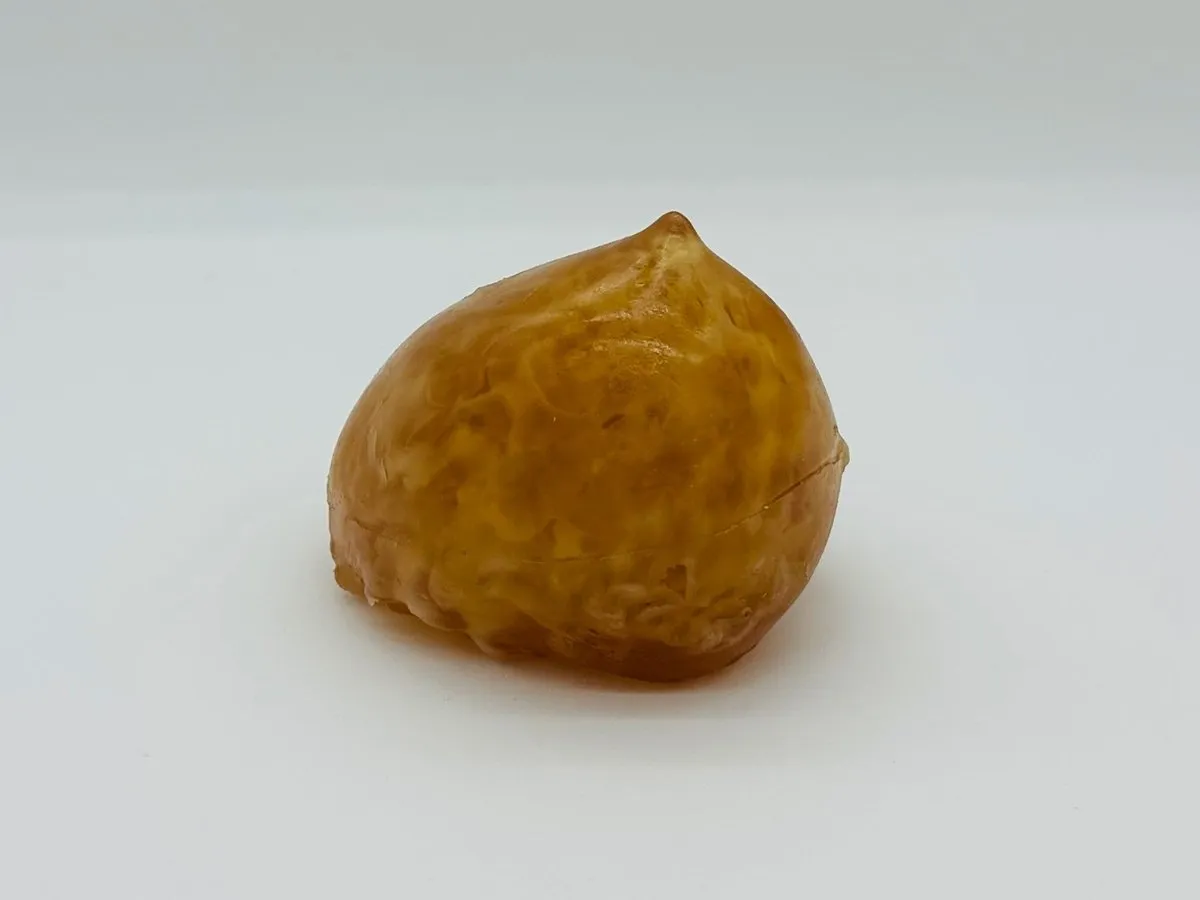

This phantom is a life-size female breast
phantom with all major lobular structures. Upon request, this product can be customized to different pathologies as
well as for specific training applications. However, BT-A03 can be used to study several diagnostic X-Ray CT and
ultrasound procedures in different orientation and positioning techniques.
Anatomy
- Cartilage
- Major Fat Tissues
- Major Muscles
- Axillary Lymph Nodes
- Subcutaneous Adipose
- Retromammary Adipose
- Mammary Glands
- Three Spherical Tumors
- Adult Breast (Simple) Phantom
- User Manual/Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
- Height: 4.7 x 4.7 x 4.7 in (approx.)
- Weight: 1.8 lbs (approx.)
- Height: 12 x 10 x 10 in (approx.)
- Weight: 6 lbs (approx.)
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
GTSimulators by Global Technologies
True Phantom Solutions Authorized Dealer
Coming Soon...
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz[dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
|---|---|---|---|---|---|---|
| Organs with Speckles (liver, kidneys, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1400 ± 10 | 1.00 | 1.2 ± 0.2 | 30 | 65 | NO/LOW |
| Tumor Feature | 1400 ± 10 | 1.01 | 1.2 ± 0.2 | 30 | 65 | YES |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
|---|---|---|---|---|---|
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| S.No. | Tissue Type | HU Value (average) |
|---|---|---|
| 1 | Body Tissue | -25 |
| 2 | Trabecular Bone | 800 |
| 3 | Cortical Bone | 1300 |
